catoolRT - Specifications

USB

USB-6210³
USB-6211³
USB-6212³
USB-6215³
USB-6216³
USB-6218³

USB-6221¹
USB-6225¹
USB-6229¹
USB-6251¹
USB-6255
USB-6259¹
USB-6281
USB-6289

USB-6341
USB-6343
USB-6346⁹
USB-6349⁹
USB-6351
USB-6353
USB-6356⁹
USB-6361
USB-6363
USB-6366⁹

PCI

PCI-6013³
PCI-6014³
PCI-6023E^1,3
PCI-6024E^1,3
PCI-6025E^1,3
PCI-6034E^1,3
PCI-6035E^1,3
PCI-6036E^1,3
PCI-6040E^1,3
PCI-6052E^1,3
PCI-6070E^1,3
PCI-6071E^1,3
PCI-6110^3,9
PCI-6111^3,9
PCI-6115^3,9

PCI-6120^3,9
PCI-6122^3,9
PCI-6123^3,9
PCI-6132^1,3
PCI-6133^1,3
PCI-6143^3,9
PCI-6154^3,9
PCI-6220¹
PCI-6221
PCI-6224¹
PCI-6225
PCI-6229

PCI-6230¹
PCI-6232¹
PCI-6233¹
PCI-6236¹
PCI-6238¹
PCI-6239¹
PCI-6250¹
PCI-6251¹
PCI-6254¹
PCI-6255
PCI-6259¹
PCI-6280
PCI-6281
PCI-6284
PCI-6289

PCIe

PCIe-6251¹
PCIe-6259¹

PCIe-6320
PCIe-6321
PCIe-6323
PCIe-6341
PCIe-6343
PCIe-6346⁹

PCIe-6351
PCIe-6353
PCIe-6361
PCIe-6363
PCIe-6374⁹
PCIe-6376⁹

PXI

PXI-6040E^1,3
PXI-6052E^1,3
PXI-6070E^1,3
PXI-6071E^1,3
PXI-6115^3,9
PXI-6120^3,9
PXI-6122^3,9
PXI-6123^3,9
PXI-6132^3,9
PXI-6133^3,9
PXI-6143^3,9

PXI-6220¹
PXI-6221¹
PXI-6224
PXI-6225
PXI-6229
PXI-6230
PXI-6232
PXI-6233
PXI-6236
PXI-6238
PXI-6239

PXI-6250¹
PXI-6251¹
PXI-6254¹
PXI-6255¹
PXI-6259¹
PXI-6280
PXI-6281
PXI-6284
PXI-6289

PXI/PXIe Controllers

~~PXI-8101~~^{1,8 [204]}
~~PXI-8102~~^{1,8 [670]}
~~PXI-8104~~^{1,8 [385]}
~~PXI-8105~~^{1,7,8 [807]}
~~PXI-8106~~^{1,7,8 [713]}
PXI-8108^{1 [933]}
PXI-8109^{1 [1969]}
PXI-8110^{1 [1996]}
PXI-8115^{1 [1751]}
PXI-8119^{1 [4714]}
~~PXI-8145~~^1,7,8
~~PXI-8146~~^1,7,8
~~PXI-8155(B)~~^1,8
~~PXI-8156(B)~~^1,8

~~PXI-8170~~^1,8
~~PXI-8174~~^1,8
~~PXI-8175~~^1,8
~~PXI-8176~~^1,8
~~PXI-8183~~^1,7,8
~~PXI-8184~~^1,7,8
~~PXI-8185~~^1,7,8
~~PXI-8186~~^{1,7,8 [242]}
~~PXI-8187~~^{1,7,8 [246]}
~~PXI-8195~~^{1,7,8 [332]}
~~PXI-8196~~^{1,7,8 [416]}
PXI-8820^[1401]

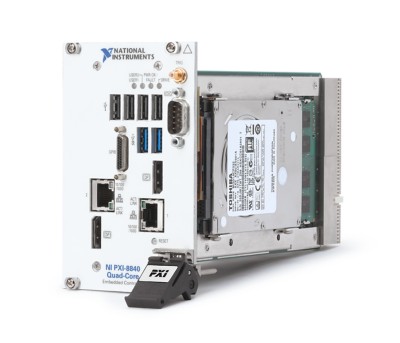

PXI-8840^[3293]

~~PXIe-8100~~^{1,8 [278]}
~~PXIe-8101~~^{1,8 [204]}
~~PXIe-8102~~^{1,8 [670]}
~~PXIe-8103~~^{1,8 [416]}
~~PXIe-8105~~^{1,8 [807]}
~~PXIe-8106~~^{1,8 [713]}
PXIe-8108^{1 [933]}
PXIe-8115^{1 [1751]}
~~PXIe-8130~~^{1,8 [572]}
PXIe-8133^{1 [1869]}
PXIe-8135^{1 [4714]}
PXIe-8820^[1401]
PXIe-8821^[2613]
PXIe-8840^[3293]
PXIe-8861^[8013]
PXIe-8880^[9602]

PXIe

PXIe-6124⁹
PXIe-6251¹
PXIe-6259¹
PXIe-6341
PXIe-6345
PXIe-6349⁹

PXIe-6355
PXIe-6356⁹
PXIe-6358⁹
PXIe-6361
PXIe-6363
PXIe-6365
PXIe-6366⁹
PXIe-6368⁹

PXIe-6375
PXIe-6376⁹
PXIe-6378⁹
PXIe-6386
PXIe-6396

cDAQ

~~cDAQ-9132~~^{2,8 [399]}
~~cDAQ-9133~~^{2,8 [399]}
~~cDAQ-9134~~^{2,8 [399]}
~~cDAQ-9135~~^{2,8 [399]}
cDAQ-9136^{2 [993]}
cDAQ-9137^{2 [993]}
~~cDAQ-9138~~^{1,2,7,8 [684]}
cDAQ-9139^{1,2,7 [1081]}

cDAQ-9172^1,2,4,5
cDAQ-9174²
cDAQ-9178
cDAQ-9179
cDAQ-9184²
cDAQ-9185²
cDAQ-9188
cDAQ-9188XT
cDAQ-9189²

NI-9201
NI-9205
NI-9206
NI-9207
NI-9209
NI-9215⁹
NI-9220⁹
NI-9221
NI-9222⁹
NI-9223⁹
NI-9229⁹
NI-9239⁹
NI-9252⁹

Legacy

DAQPad-6015^1,6
DAQPad-6016^1,6
DAQCard-6715^1,6
DAQCard-6024E^1,6
DAQCard-6036E^1,6
DAQCard-6062E^1,6

¹ Hardware is declared legacy by National Instruments
² CompactDAQ chassis used with an external crank angle encoder will require a digital IO module such as NI-9401 or NI-9411
³ Encoderless acquisition requires an analogue channel to be used for the crank position sensor. This will reduce the maximum resolution and/or engine speed available for other channels
⁴ The cDAQ-9172 only has one analogue input timing engine. It therefore cannot be used to acquire low speed voltage or thermocouple data simultaneously with combustion data
⁵ No longer supported in NI-DAQmx 17.6 onwards
⁶ Not supported in NI-DAQmx for 64-bit Windows
⁷ No longer supported in NI-DAQmx 19.0 onwards
⁸ PassMark CPU score means it is not recommended to use this hardware
⁹ Supports simultaneous sampling
^[] PassMark CPU score

E&EO. Please note that this list is not exhaustive nor a guarantee. Please email support@xarin.com if the hardware you want to use is not listed or to confirm compatibility with your specific application.
